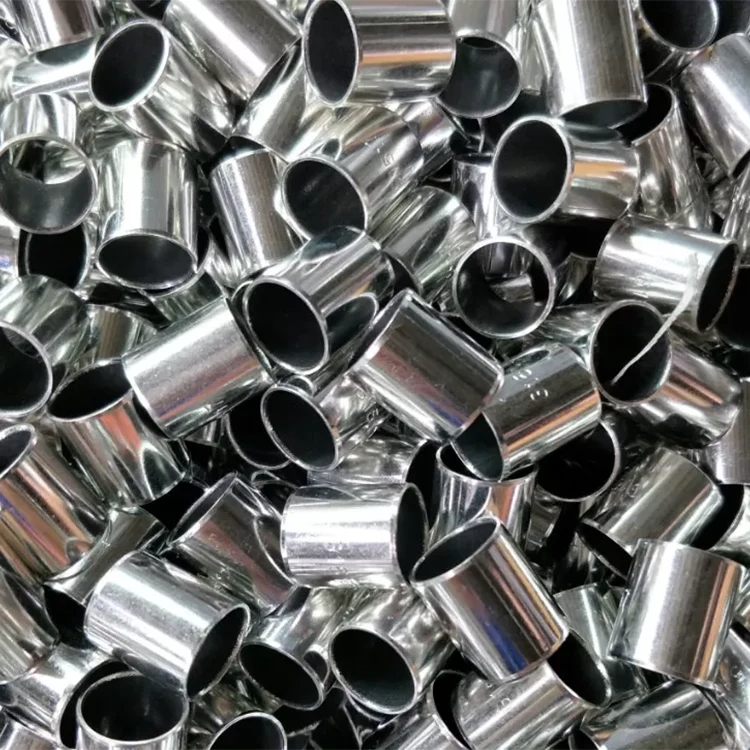

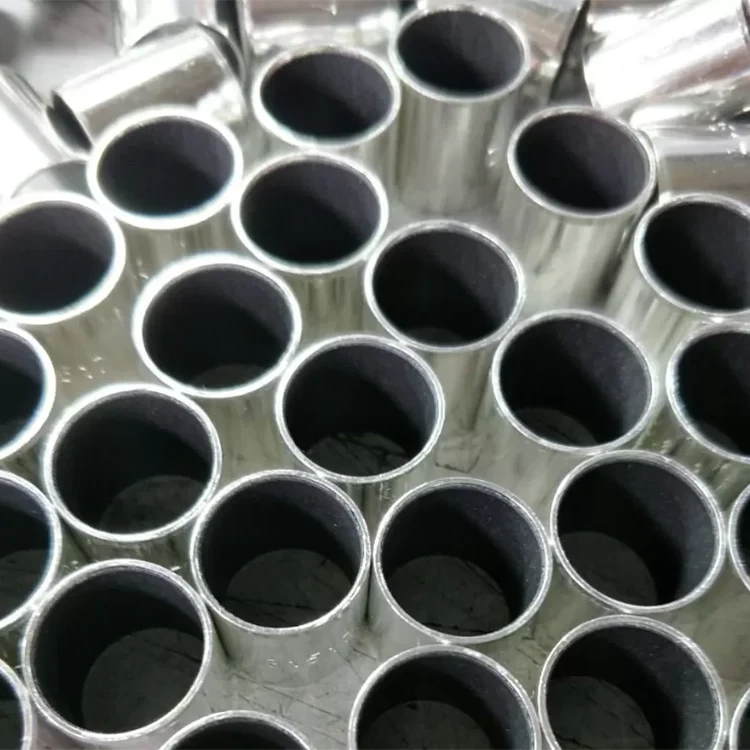

PTFE na Nakabalot ng 316 Stainless Steel Bushing
Ang Top Bearings ay isang propesyonal na tagagawa at supplier ng China PTFE Wrapped 316 Stainless Steel Bushing, kung naghahanap ka ng pinakamahusay na PTFE Wrapped 316 Stainless Steel Bushing na may mababang presyo, kumunsulta sa amin ngayon!
Magpadala ng Inquiry
Paglalarawan ng Produkto
Ang Top Bearings ay isang propesyonal na tagagawa at supplier ng China PTFE Wrapped 316 Stainless Steel Bushing, kung naghahanap ka ng pinakamahusay na PTFE Wrapped 316 Stainless Steel Bushing na may mababang presyo, kumunsulta sa amin ngayon!
Parameter ng Produkto
|
Materyal: |
Hindi kinakalawang na Bakal + Tanso + Ptfe |
Kakayahang Supply: |
Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
|
Katangian: |
Mababang-pagpapanatili At Walang Maintenance na Plain Bearings |
Tampok ng Produksyon: |
Bushes, Collar Bushes, Washers, Strips O Espesyal na Disenyo |
|
Plating: |
Tin O Copper Plated |
Sukat: |
Customized Size, Customized Request, All Standard, Alinsunod sa Kahilingan ng Customer |
|
Pagpapadulas: |
Walang langis |
Ang mga detalye sa pag-iimpake: |
I-export ang Standard Packing |
|
Mataas na Liwanag: |
PTFE Self Lubricating Bushings, DIN 1494 Self Lubricating Bushings, Walang Maintenance na Stainless Steel Bushing |
||
Hindi kinakalawang na asero 316 PTFE na Nakabalot na Bushing DIN 1494 ISO 3547 Libre ang Pagpapanatili
Maghanap ng bushing sleeve staninless steel 316 na pagtatalaga ng produkto, kategorya, Cylindrical bushes, Flanged bushes, Thrust washers, Sliding plates, CAD models o catalogs. Kumuha ng Libreng Quote!
|
pangalan ng Produkto
|
Suplay PTFE Hardened Steel Bush Balutin Split Sleeve DU Bearing Steel Insert PTFE Bushing
|
|
materyal
|
Steel+Bronze+PTFE+Pb+Filler
|
|
Sukat
|
Maaari kaming bumuo ayon sa espesyal na pangangailangan ng mga customer.
|
|
Pamantayan
|
IATF 16949:2016, SGS, RoHS
|
|
Temperatura sa Paggawa
|
-200~+280â
|
|
Sa labas ng Ibabaw
|
Copper/Lata
|
|
Ginamit
|
Mga makina ng sasakyan, Mga gear pump, Shock absorber, Mga bisagra ng pinto, Mga upuan, pag-print, pinagtagpi, makinarya ng tabako at gymnastic, pneumatic cylinder.
|
Ang superyor na pagganap ng metal polymer plain bushings ay nakasalalay sa kanilang natatanging composite structure:
- Stainless Steel 316 o 304 backing para sa mataas na mekanikal na lakas
- Impregnated anti-friction overlay na pinayaman ng PTFE at mga filler o extruded thermoplastic tape
- Porous sintered bronze interlayer para sa mataas na wear resistance
du bushing size chart
| Di (mm) | gawin (mm) | B (mm) | tindig | baras | Ang pinakamalaking diameter (mm) | Minimum na diameter (mm) | Ang maximum na clearance (mm) | Ang minimum na clearance (mm) | |
| 0203DU | 2 | 3.5 | 3 | H6 | h6 | 2.048 | 2 | 0.054 | 0 |
| 0205DU | 2 | 3.5 | 5 | H6 | h6 | 2.048 | 2 | 0.054 | 0 |
| 0303DU | 3 | 4.5 | 3 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0305DU | 3 | 4.5 | 5 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0306DU | 3 | 4.5 | 6 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0403DU | 4 | 5.5 | 3 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0404DU | 4 | 5.5 | 4 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0406DU | 4 | 5.5 | 6 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0410DU | 4 | 5.5 | 10 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0505DU | 5 | 7 | 5 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0508DU | 5 | 7 | 8 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0510DU | 5 | 7 | 10 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0604DU | 6 | 8 | 4 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0606DU | 6 | 8 | 6 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0608DU | 6 | 8 | 8 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0610DU | 6 | 8 | 10 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0705DU | 7 | 9 | 5 | H7 | f7 | 7.055 | 6.99 | 0.083 | 0.003 |
| 0710DU | 7 | 9 | 10 | H7 | f7 | 7.055 | 6.99 | 0.083 | 0.003 |
| 0806DU | 8 | 10 | 6 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0808DU | 8 | 10 | 8 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0810DU | 8 | 10 | 10 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0812DU | 8 | 10 | 12 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 1006DU | 10 | 12 | 6 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1008DU | 10 | 12 | 8 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1010DU | 10 | 12 | 10 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1012DU | 10 | 12 | 12 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1015DU | 10 | 12 | 15 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1020DU | 10 | 12 | 20 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1208DU | 12 | 14 | 8 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1210DU | 12 | 14 | 10 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1212DU | 12 | 14 | 12 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1215DU | 12 | 14 | 15 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1220DU | 12 | 14 | 20 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1225DU | 12 | 14 | 25 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1310DU | 13 | 15 | 10 | H7 | f7 | 13.058 | 12.99 | 0.092 | 0.006 |
| 1320DU | 13 | 15 | 20 | H7 | f7 | 13.058 | 12.99 | 0.092 | 0.006 |
| 1405DU | 14 | 16 | 5 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1410DU | 14 | 16 | 10 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1412DU | 14 | 16 | 12 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1415DU | 14 | 16 | 15 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1420DU | 14 | 16 | 20 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1425DU | 14 | 16 | 25 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1510DU | 15 | 17 | 10 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1512DU | 15 | 17 | 12 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1515DU | 15 | 17 | 15 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1520DU | 15 | 17 | 20 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1525DU | 15 | 17 | 25 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1610DU | 16 | 18 | 10 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1612DU | 16 | 18 | 12 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1615DU | 16 | 18 | 15 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1620DU | 16 | 18 | 20 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1625DU | 16 | 18 | 25 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1720DU | 17 | 19 | 20 | H7 | f7 | 17.061 | 16.99 | 0.095 | 0.006 |
| 1810DU | 18 | 20 | 10 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1815DU | 18 | 20 | 15 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1820DU | 18 | 20 | 20 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1825DU | 18 | 20 | 25 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 2010DU | 20 | 23 | 10 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2015DU | 20 | 23 | 15 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2020DU | 20 | 23 | 20 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2025DU | 20 | 23 | 25 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2030DU | 20 | 23 | 30 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2215DU | 22 | 25 | 15 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2220DU | 22 | 25 | 20 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2225DU | 22 | 25 | 25 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2230DU | 22 | 25 | 30 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2415DU | 24 | 27 | 15 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2420DU | 24 | 27 | 20 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2425DU | 24 | 27 | 25 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2430DU | 24 | 27 | 30 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2515DU | 25 | 28 | 15 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2520DU | 25 | 28 | 20 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2525DU | 25 | 28 | 25 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2530DU | 25 | 28 | 30 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2550DU | 25 | 28 | 50 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2815DU | 28 | 32 | 15 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2820DU | 28 | 32 | 20 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2825DU | 28 | 32 | 25 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2830DU | 28 | 32 | 30 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 3010DU | 30 | 34 | 10 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3015DU | 30 | 34 | 15 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3020DU | 30 | 34 | 20 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3025DU | 30 | 34 | 25 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3030DU | 30 | 34 | 30 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3040DU | 30 | 34 | 40 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3220DU | 32 | 36 | 20 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3230DU | 32 | 36 | 30 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3240DU | 32 | 36 | 40 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3520DU | 35 | 39 | 20 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3530DU | 35 | 39 | 30 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3535DU | 35 | 39 | 35 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
Bushes EGB..-E40, bushes, walang maintenance, na may backing na bakal
Mga nakabalot na split bushing na ginawa mula sa isang ID na 3mm hanggang 400mm, nakabalot na bushing, split joint type,stainless steel 316 o 304 backed bushing bearings/PTFE, DIN 1494/ISO 3547, Maintenance-free.
Walang kaagnasan at walang maintenance na materyal dahil sa hindi kinakalawang na asero at PTFE. Natitirang sliding at wear performance.
Ang mga inirerekomendang kondisyon ng aplikasyon ay ang mataas na load, mataas na temperatura at mataas na polluted na kapaligiran na may grasa o oil lubrication. Ito ay may mahusay na wear resistance. Ang materyal na ito ay malawakang ginagamit sa kingpin bushing, piston pump, makinarya sa agrikultura. Ito ay angkop lalo na para sa mga aplikasyon kung saan ang pampadulas ay hindi maaaring ibigay nang tuloy-tuloy o paulit-ulit.
